Preview Instructions for
Dynamic LED Turn Signals with Daytime Running Lights
What you need
• Torx 25 & 30
• Plastic tool / pry tool for disassembly
• Multimeter (if needed)
• Crimp tool (when assembling with buttons)
Important before you begin
Assemble and complete one side at a time.
The instructions must be followed carefully for both the right and left sides, as
cars may be wired differently from the factory.
Always check the function before final assembly.
If the instructions are not followed, the adapter harness risks being damaged.
Once one side is complete, repeat the same procedure on the next side.
This page shows a simplified overview of the assembly process.
Certain installation details and connection points are only shown in the complete instructions included with the product.
This helps to ensure correct installation and protects developed installation material.
Complete installation guide included after purchase.
Step 1

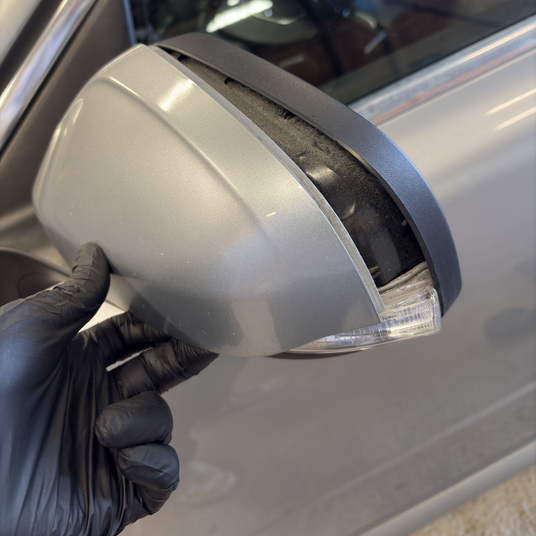

Remove the mirror cover
More information on this can be found in the full instructions.
Step 2

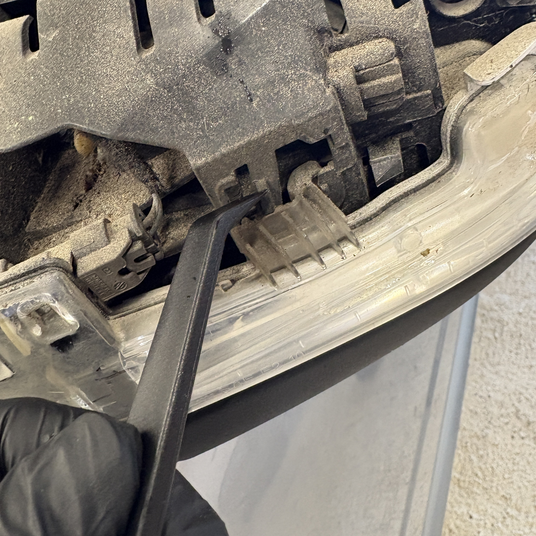

Remove the original indicator
Further information on this can be found in the complete instructions.
Step 3
Test the turn signal function
Further information on this can be found in the full instructions.
Step 4

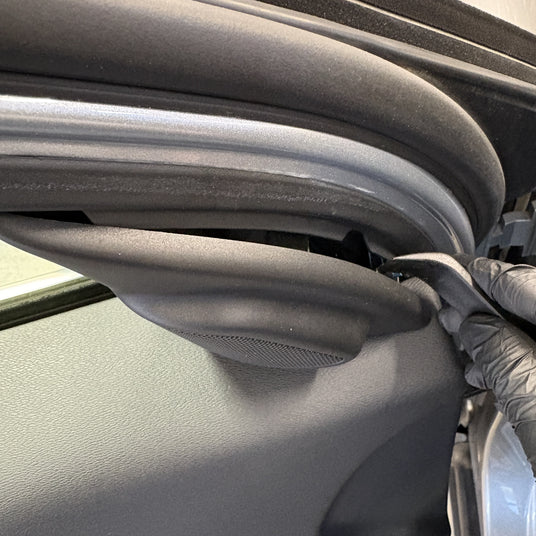

Remove the tweeter
More information on this can be found in the full instructions.
Step 5

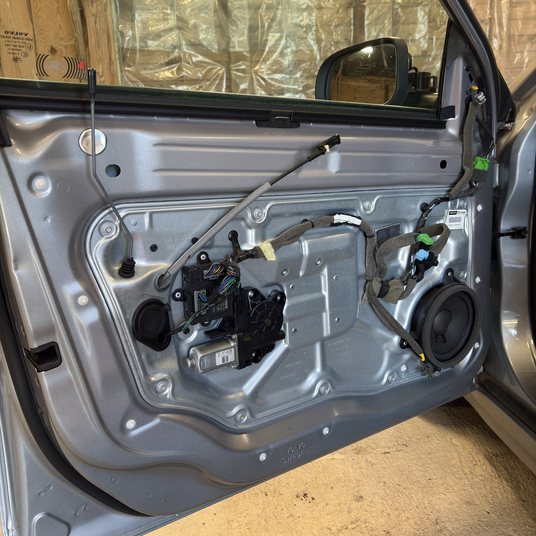

Remove the door panel
Further information on this can be found in the complete instructions.
Step 6

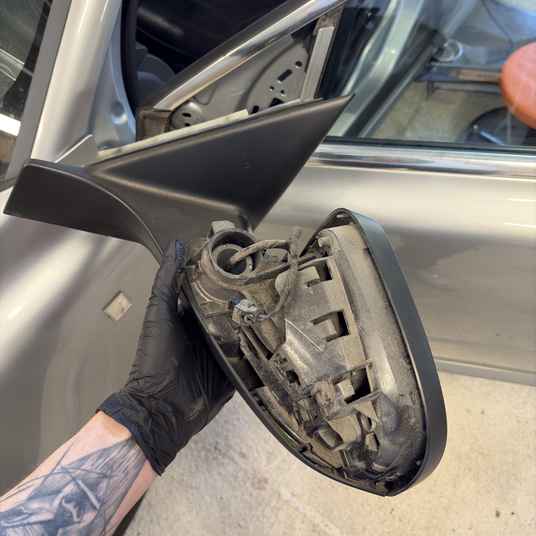

Remove the mirror
Further information on this can be found in the complete instructions.
Step 7

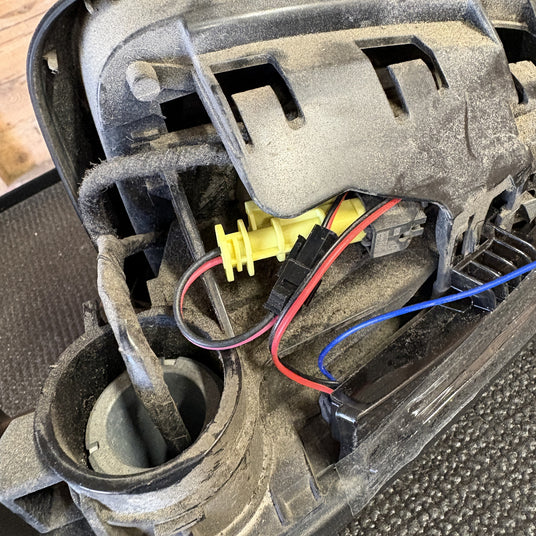

Mount the new indicator light
Further information on this can be found in the full instructions.
Step 8

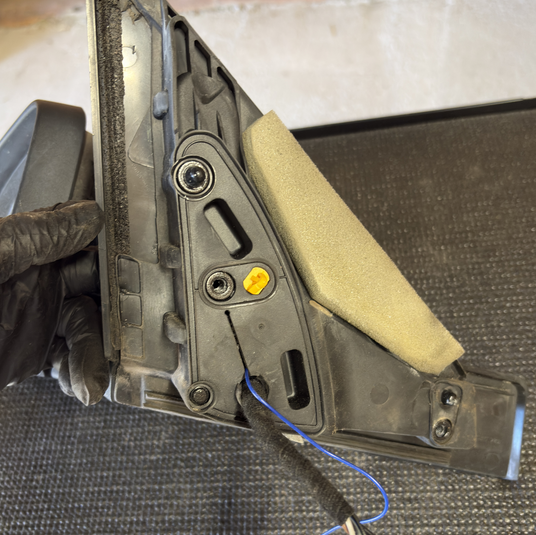

For the signal cable through the mirror housing
Further information on this can be found in the full instructions.
Step 9
Reinstall the mirror
Further information on this can be found in the complete instructions.
Step 10

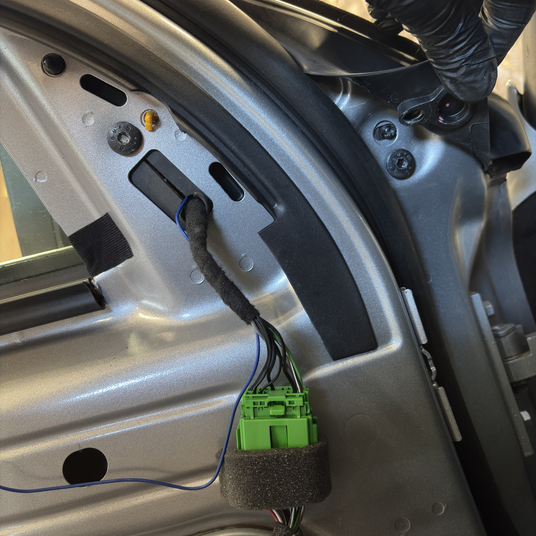

Connecting the signal cable
If your car is equipped with BLIS, you can choose to connect the indicator's white function so that it automatically turns on when the car starts, and turns off when the car is shut down.
If you want to connect it this way, connect the indicator's signal cable to the cable specified in the full instructions.
After connecting the cable, test start the car and check the function. If everything looks good, reassemble the door panel.
_______________________
You can also choose to connect the indicator's parking lights to buttons, so you can decide when you want them activated and not. They can then also be lit when the car is parked and turned off.
If you want to connect it this way, continue to follow the instructions.
More information about this can be found in the full instructions.
Step 11 (Assembly with buttons)
Position light test

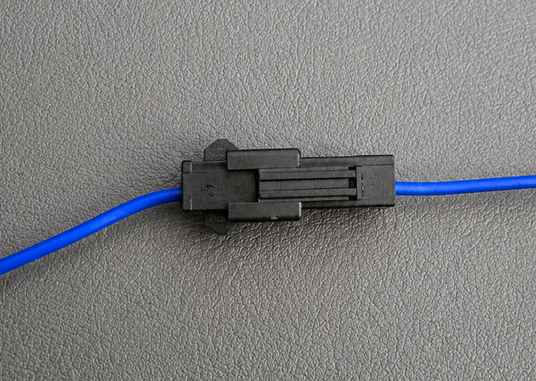

Connect one of the supplied extension cables to the mirror's signal cable.
Then, connect the other end of the extension cable temporarily to the cable specified in the full instructions to check the position light function.
Once the function is confirmed, you can disconnect the cable again.
Further information on this can be found in the full instructions.
Step 12 (Assembly with buttons)
Wiring for button installation
Take out the second extension cable and connect its pin to the same cable on which you just tested the turn signal.
Fasten the cables together with zip ties so that they do not risk vibrating loose during driving.
Further information on this can be found in the complete instructions.
Step 13 (Assembly with Buttons)

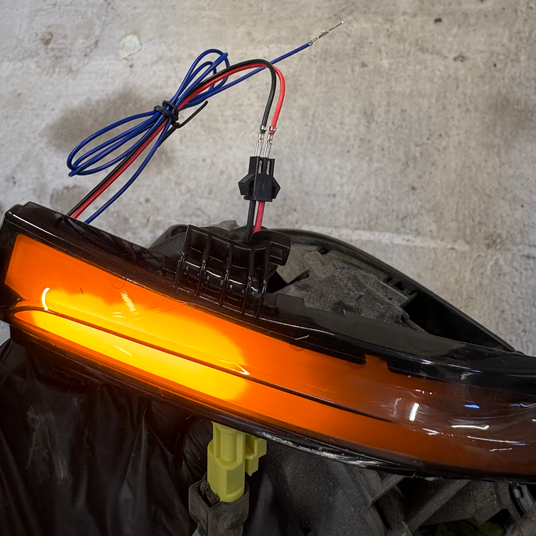

Prepare for the button
Now it's time to reassemble the door panel.

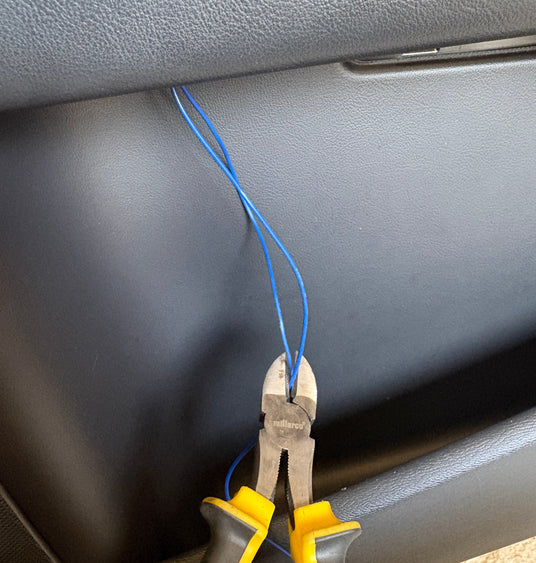

Route the 2 blue wires through the hole originally intended for the door compartment light.
Cut the wires to a suitable length for
fitting the included
wire ferrules.
More information on this can be found in the complete instructions.
Step 14 (Assembly with buttons)

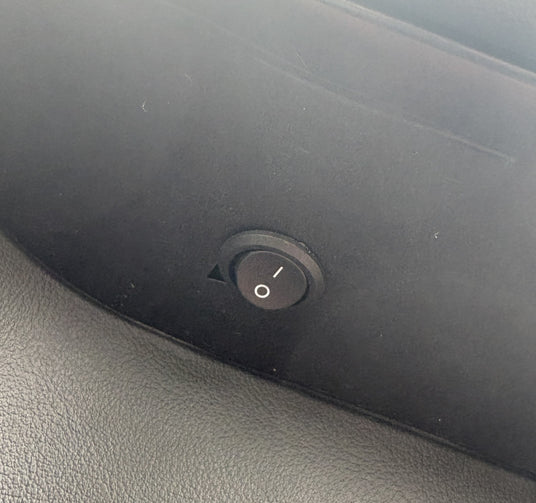

Mount the button
Insert the cables and press the button into the door panel.
Button positions:
I = white DRL function activated
0 = dynamic indicator only active
Further information on this can be found in the complete instructions.
Done!
